Wavy Top Conveyor Belts (Indus)

Product Features

  • Standard Widths – Up to 1300mm (51″)
  • Type of Fabric – EP/NN
  • Standard Belt Rating – 200 kN/m (110 PIW) to 1000 kN/m (571 PIW).
  • No. of Ply’s – 1 Ply to 4 Ply
  • Rubber Cover Thickness – Top cover: Up to 5 mm (1/5″) | Bottom cover: Up to 3 mm (3/8″) | Bare Back Surface also available.
  • Colour – Black
  • Edge – Cut Edge
  • Splicing Method – Hot / Mechanical
  • Cover Grades – Available in General Purpose Impact & Abrasion Resistant(M24, DIN-X, Y, HAR, SAR), Oil Resistant(OR),
    Heat Resistant(HR), Fire Resistant (FR)grades and combinations available on request.
  • Single Roll Length – 200 Meters (650’) | Longer roll lengths available on request (endless length also available on request).
  • Standard Packing – Wrapping in HDPE sheets with Strapping. | (Wooden Crate / Metal Crate packing is available on request).
  • Belt Identification Number – A unique BIN (Belt identification number) at every 10 meters (33’)
Categories: ,

Description

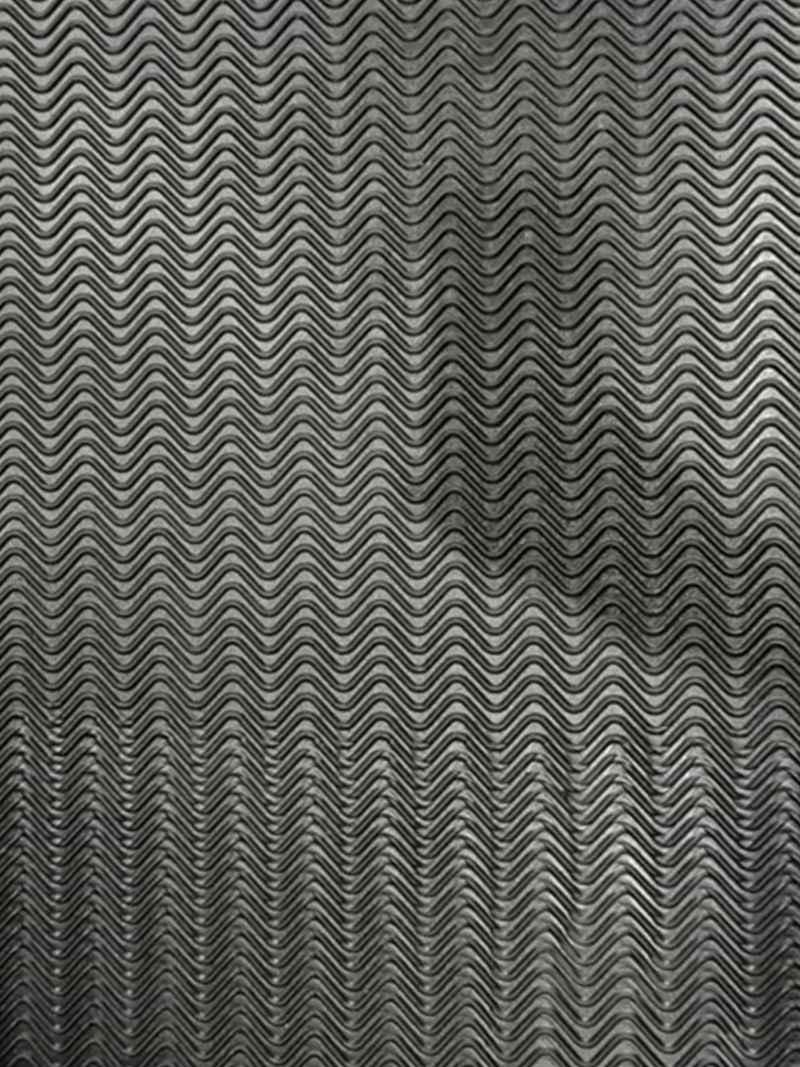

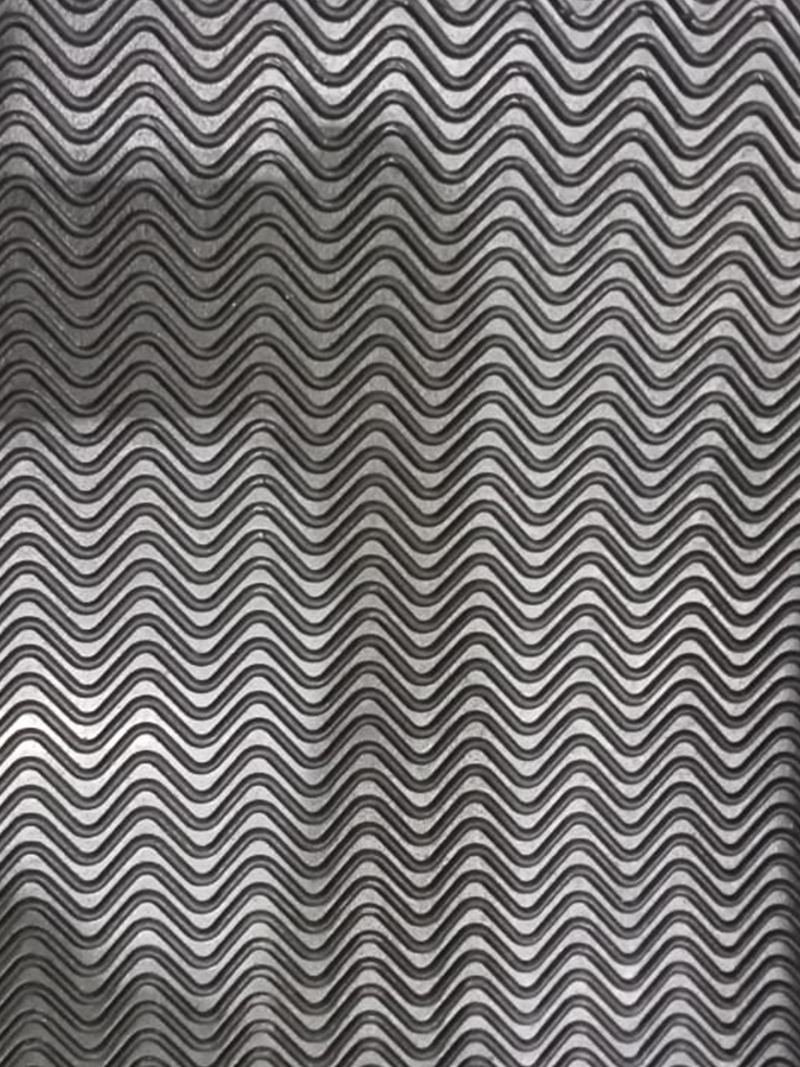

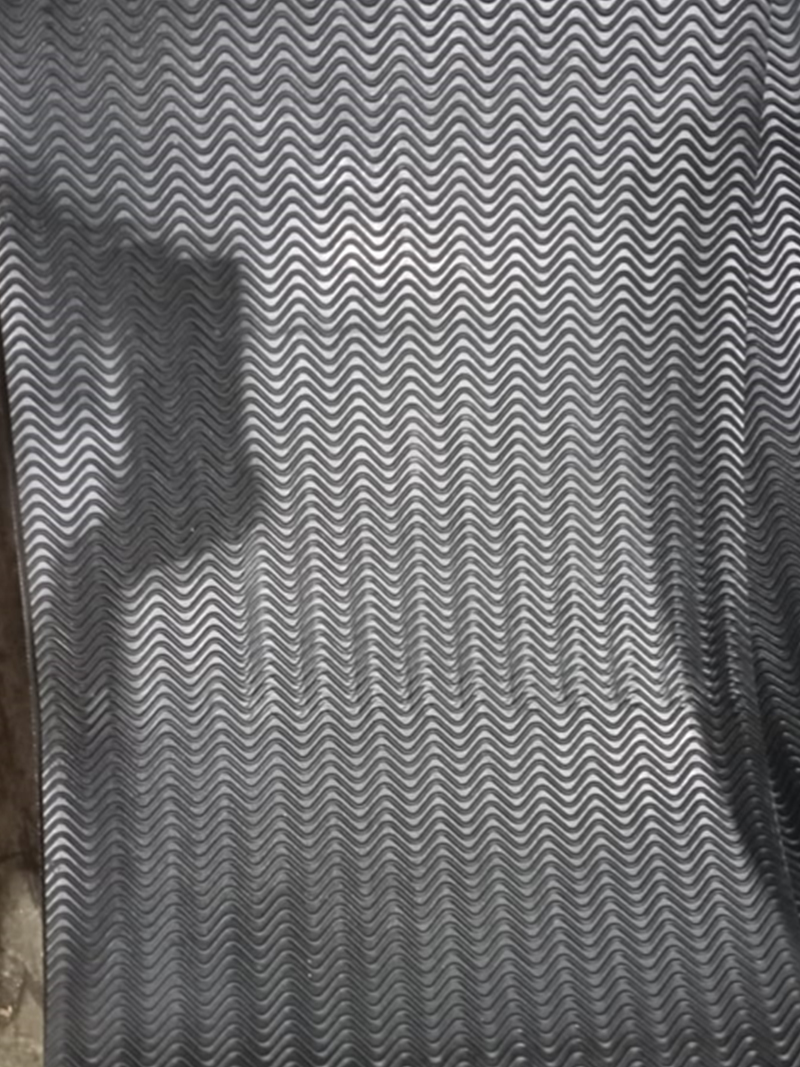

Indus Wavy Top

Transportation or conveying of lightweight materials like cartons, paper, glass, packaged goods etc., on flat or inclined surfaces, requires a special kind of belt. Wavy top belts provide good friction coefficient to ensure that the material being conveyed doesn’t slip or roll back.

Salient Features:

  • These belts are usually being supplied in Jointless Length.
  • Maximum Uniformity of thickness and strength all over the surface.
  • Engineered to be driven over narrow pulley diameter (even lower than 100mm if supplied as Jointless belt).
  • Can run at higher speed (as high as 25 m/sec).
  • Option for minimum elongation (up to 1.0%) at ref. load.
  • Belt can be manufactured in all specified grades meeting customer’s requirement.
