Rubber Sheets (RTP)

Product Features

  • Available Grades – Natural Rubber, SBR, Nitrile Rubber, EPDM Rubber, Neoprene Rubber, Silicone Rubber, Butyl Rubber. (Food Grade Polymers are also available for food industry application)
  • Surface Finish – With Cushion Back (fabric impression back)/ Smooth/ Plain
  • Insertion Fabric – EP/NN/Breaker/Customized Fabric Insertion
  • Colour – Black, Red, Pink, Green, Orange, Blue, Off White, Translucent, Milky White, Snow White, Tan
  • No. of Ply’s – 1 Ply to 8 Ply
  • Width – up to 2200 mm (86”)
  • Length – up to 10 Meters (33′), longer roll length are available on request
  • Packing – Rolls are wrapped in White Colour HDPE sheet with strapping tapes. | Palletized packing is available for container load volumes.
  • Bonding Layer – All Rubber Sheets are available with Neoprene Bonding Layer | (Tacky back layer) on request.
  • Standard Packing – Wrapping in HDPE sheets with Strapping.
  • Belt Identification Number – A unique BIN (Belt identification number) at every 10 meters (33’)
Category:

Description

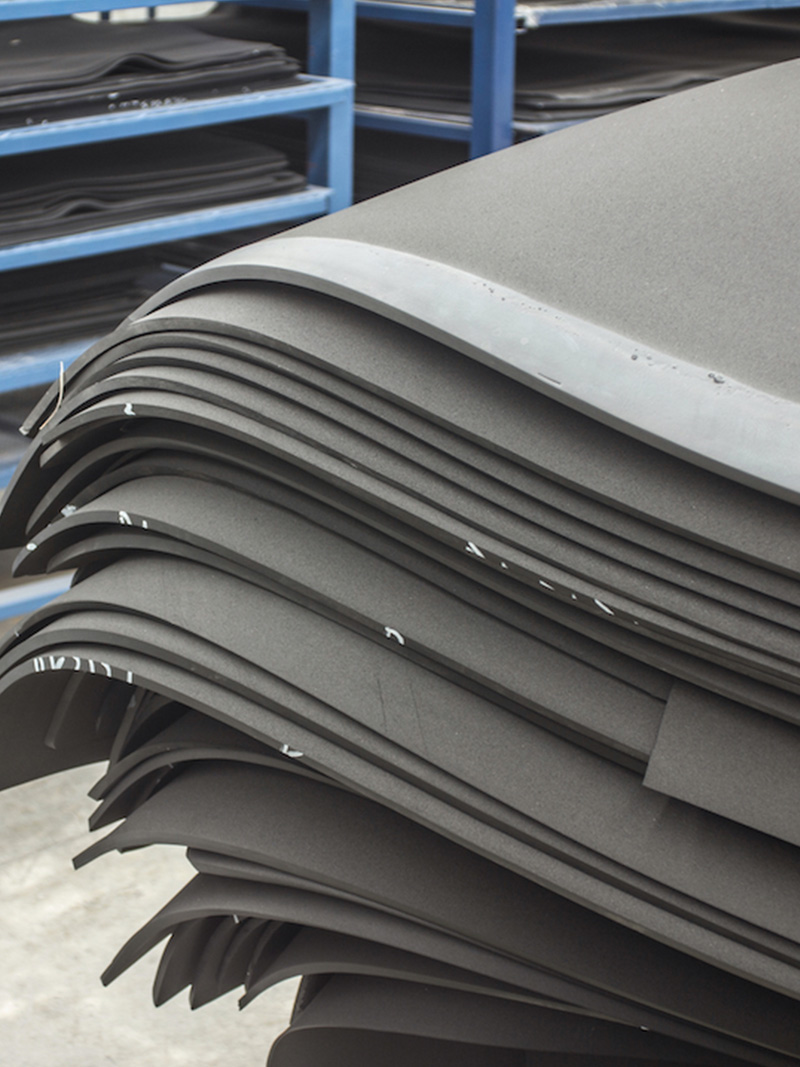

Rubber Sheet

Indus Rubber Sheets are manufactured in our state of the art Rotocure line imported from Intrafloor, UK.

Indus Rubber Sheeting & Matting has a variety of application such as:
  • Sealing : Gaskets
  • Protection : Machine & Process (Diaphragm Rubber)
  • Safety : Electrical Insulation, fire/smoke
  • Flooring : Industrial Matting
  • Wear & Tear : Wear Resistant Rubber Sheets for chute, hopper, truck, etc.
  • Conveyor System : Drum Lagging, Skirt Rubber, Scraper Rubber
  • Tank & Pipe Lining : Corrosion Resistant Sheets
  • Water Proofing : Roofing Membranes
  • Special Application : Coated Fabrics for River Craft & Tents.

INDUS offer Electrical Insulation matting as per ASTM D 178 – 01

As per ASTM D 178 – 01 Class Wise Thickness Wise Electrical Properties
Sr. No Thickness
(mm)		 Tolerance
+/- (mm)		 Tolerance
(Fraction Inches)		 Tolerance
(Decimal Inches)		 Tolerance
+/- (Inches)		 AC (Alternate Current)
Proof Test
Voltage (rms V)		 Dielectric Test
Voltage (rms V)
0 3.20 0.80 1/8″ 0.13 0.030 5000 6000
1 4.80 0.80 3/16″ 0.19 0.030 10000 20000
2 6.40 0.80 1/4″ 0.25 0.030 20000 30000
3 9.50 1.20 3/8″ 0.38 0.050 30000 40000
4 12.70 1.20 1/2″ 0.50 0.050 40000 50000

INDUS RUBBER SHEET Range of Grades

Grades Product Code Specific Gravity gm/cm³
(+/- 0.05)		 Minimum Tensile Strength (Mpa) Shore Hardness (+/- 5 Shore A) Minimum Elongation at Break (%) Application
Commercial NR / SBR CNR/ CAR 1.20 to 1.60 2.5 to 8 45 to 80 200 to 400 Non critical general purpose use such as gaskets & packing , flooring, curtains
Skirting Rubber SKR 1.20 to 1.30 6 to 15 45 to 60 300 to 600 Used as skirt rubber in conveyor system
Abrasion Resistant HAR / EAR 0.98 to 1.20 12 to 24 45 to 60 500 to 800 Chute lining, mill lining, high abrasive crusher units.Can achieve abrasion of less than 100 mm³ depending on the severity of abrasion.
Weather Resistant
(Ozone & UV Resistant)		 CR /NR/ EPDM 1.30 to 1.50 6 to 12 60 400 to 600 Outdoor applications.
Heat Resistant SBR / EPDM 1.20 to 1.40 6 to 12 60 300 to 600 Used for heat resistant application for temperature ranging from 100 °C to 200 °C
Water Proofing Membrane EPDM 1.20 to 1.40 6 to 10 60 300 to 600 Used for water proofing of terraces.
Oil Resistant NBR 1.20 to 1.40 6 to 10 60 300 to 600 Used for gaskets in oil lines & chemical lines.
Fire Resistant CR 1.30 to 1.50 6 to 12 60 400 to 600 Used in fire hazard application such as pulley lagging in coal conveyor system.
Chemical Resistant BR 1.20 8 60 400 Used in lining application of chemical tanks.
Scrapper EAR 1.20 15 60-45-60 400 Used for conveyor belt surface cleaning.
Silicone SI /TSI 1.20 to 1.50 6 to 8 60 250 to 400 Food grade application / potable water lines gasket application.
Matting GRM/WRM 1.2 to 1.55 3 to 8 60 250 to 400 Industrial flooring, assembly line mats.

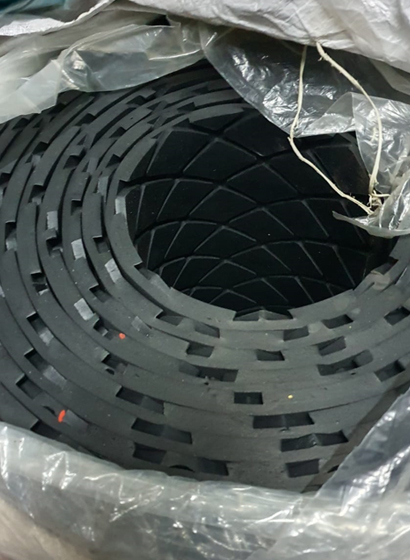

Lagging Sheets DPL 1.20 to 1.50 8 to 24 60 350 to 600 Diamond profile pulley lagging sheets
