Rough Top Conveyor Belts (Indus)

Product Features

  • Standard Widths – Up to 1500mm (60”)
  • Type of Fabric – EP/NN
  • Standard Belt Rating – 100 kN/m (57 PIW) to 1000 kN/m (571 PIW)
  • No. of Ply’s – 1 Ply to 4 Ply
  • Rubber Cover Thickness – Top cover: Up to 5 mm (1/5″) | Bottom cover: Up to 3mm (1/8″) | Bare Back Surface also available.
  • Colour – Black
  • Edge – Cut Edge
  • Splicing Method – Hot / Mechanical
  • Cover Grades – Available in General Purpose Impact & Abrasion Resistant(M24, DIN-X, Y, HAR, SAR), Oil Resistant(OR),
    Heat Resistant(HR), Fire Resistant (FR)grades and combinations available on request.
  • Single Roll Length – 200 Meters (650’) | Longer roll lengths available on request.
  • Standard Packing – Wrapping in HDPE sheets with Strapping. | (Wooden Crate / Metal Crate packing is available on request).
  • Belt Identification Number – A unique BIN (Belt identification number) at every 10 meters (33’)
Categories: ,

Description

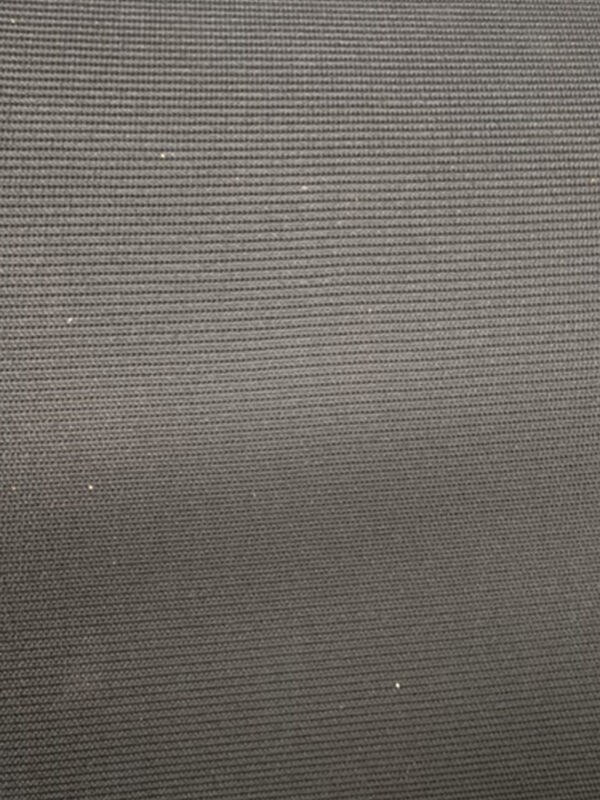

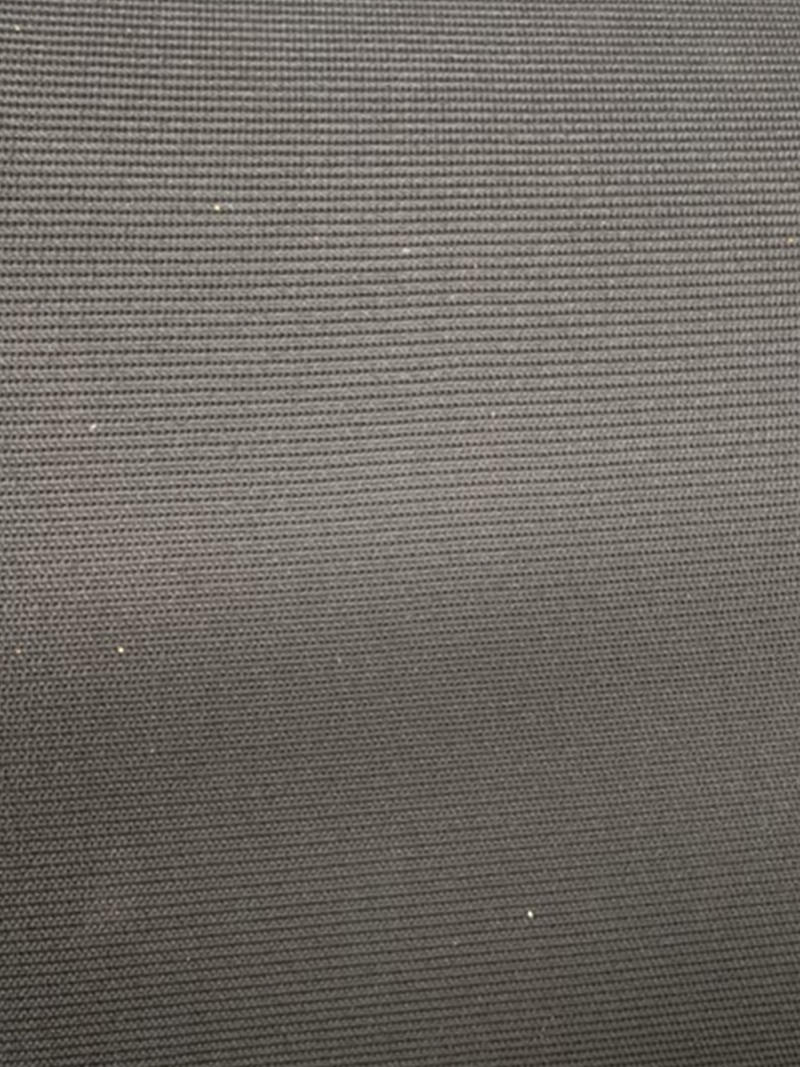

Indus Super Ridge

Transportation or conveying of lightweight materials like cartons, paper, glass, packaged goods etc., on flat or inclined surfaces, requires a special kind of belt. Having a ridged rubber surface on the top and either a bare back fabric or a regular rubber back, Indus Super Ridge Conveyor Belts are specially designed for this purpose. The ridges on the top cover offer a massive friction coefficient to ensure that the material being conveyed doesn’t slip or roll back.

*Specifications are subject to change without notice.
