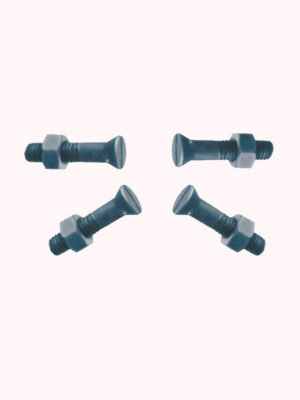

Plate Bolt Fasteners (Jackson Type) Export Quality ASC-014 (Chanae)
These are used where the work is heavy and places unsual strain on the belt joints, Manufactured from best quality selected steel.
| Size |
Screw Sizes |
Plate Thickness |
Suitable For Belts |
Suitable For Pulley |
| No. 0 |
1/4”x7/8” |
16 G |
2” to 5” |
8” to 12” Dia |
| No. 1 Small |
1/4”x7/8” |
16 G |
4” to 6” |
8” to 14” Dia |
| No. 1 Large |
1/4”x7/8” |
16 G |
5” to 8” |
10” to 16” Dia |
| No. 2 Small |
5/16”x1” |
16 G |
up to 10” |
14” to 20” Dia |
| No. 2 Large |
5/16”x1 1/8” |
16 G |
up to 15” |
16” to 30” Dia |
| No. 3 |
3/8”x1 1×4” |
14 G |
up to 24” |
up to 48” Dia |
| No. 4 |
3/8”x1 3/8” |
14 G |
up to 60” |
Not less than 36” Dia |
| No. 5 |
1/2”x1 3/4” |
10 G |
up to 72” |
From 60” Dia upward |
