Jointless Conveyor Belts (Indus)

Product Features

  • Standard Widths – Up to 2000mm (80”)
  • Standard Endless Length – Up to 50 meters +/-1% (164’ +/- 1%)
  • Type of Fabric – EP/NN (Indus recommend EP for low elongation)
  • Standard Belt Rating – 200 kN/m (110 PIW) to 2500 kN/m (1428 PIW)
  • No. of Ply’s – 1 Ply to 5 Ply
  • Rubber Cover Thickness – Top Cover: Up to 10mm (3/8”), Bottom Cover : Up to 5 mm (1/5”)
  • Colour – Black
  • Edge – Cut Edge / Moulded Edge
  • Splicing Method – Only available as a Jointless belt
  • Cover Grades – Available in General Purpose Impact & Abrasion Resistant(M24, DIN-X, Y, HAR, SAR), Oil Resistant(OR),
    Heat Resistant(HR), Fire Resistant (FR)grades and combinations available on request.
  • Surface Finish – Top Side: Rough Top, Chevron Profile, Wavy Top, Checkered Profile, Plain | Bottom Side: Bare Back, Guide Ribs & Plain
  • Standard Packing – Wrapping in HDPE sheets with Strapping. (Wooden Crate / Metal Crate packing is available on request)
  • Belt Identification Number – A unique BIN (Belt identification number) at every 10 meters (33’)
Categories: ,

Description

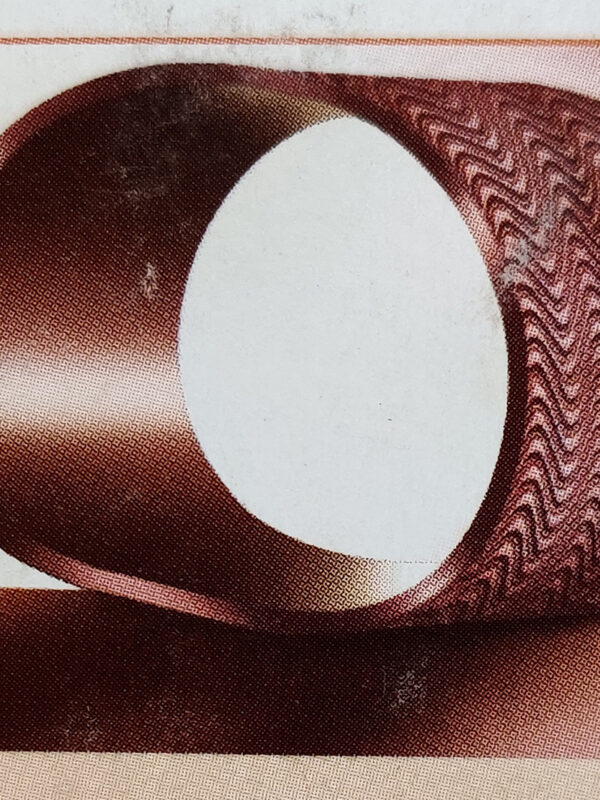

Jointless Conveyor Belt

Indus Non-Stop – Jointless Conveyor Belts has been highly acclaimed especially when they are used as telescopic, feed conveyor belts, weighing/ packing belt, in-bag diverting applications where speed is very high and pulley diameter as narrow as 100 mm.
These are made Jointless at the time of belt manufacturing to ensure maximum performance and life of the belt.

Various designs or profiles have been developed to suitable standard industry needs as mentioned below:

  • Wavy Top Conveyor Belt
  • Rough Top Conveyor Belt
  • Bag Diverter Conveyor Belt (checkered design)
  • Shot Blasting Machine / Tum Blast Machine Belt
  • Weigh Feeder Belt
  • Load-Out conveyor belts (Hot-Mix Plant)
  • Slinger Conveyor Belt

Salient Features

  • Maximum Uniformity of thickness and strength all over the surface.
  • It can be driven over narrow pulley diameter (even lower than 100mm).
  • Can run at higher speed (as high as 25 m/sec).
  • Option for minimum elongation (up to 1.0%) at ref. load.
  • These conveyor belts are ideally suitable for weigh feeder, wagon feeder, telescope conveyor, bag diverter, truck loader etc.
  • Belt can be manufactured in all specified grades meeting customer`s requirement.
  • Top cover can also be designed and embossed in various shapes as required by the customer to convey specific material in the system.
