Chevron Profile Conveyor Belts (Indus)

Product Features

  • Standard Widths – Refer to individual Profile View table
  • Type of Fabric – NN/EP/PP
  • Standard Belt Rating – 315 kN/m (171 PIW) to 1000 kN/m (571 PIW) (Higher rating can be produced on request)
  • No. of Ply’s – 3 Ply to 5 Ply
  • Rubber Cover Thickness – Top cover up to 6mm (1/4”)<br>Bottom cover up to 3mm (1/8”)
  • Rubber Cover Grades – Available in General Purpose Impact & Abrasion Resistant(M24,DIN-X,Y,HAR,SAR),Oil Resistant(OR),<br> Heat Resistant(HR) ,Fire Resistant (FR)grades and combinations available on request.
  • Colour – Black
  • Edge – Cut Edge / Moulded Edge
  • Splicing Method – Hot / Cold / Mechanical
  • Single Roll Length – 150 Meters (500’) , longer lengths available on request
  • Standard Packing – Wrapping in HDPE sheets with Strapping. (Wooden Crate / Metal Crate packing is available on request)
  • Belt Identification Number – A unique BIN (Belt identification number) at every 10 meters (33’)
Categories: ,

Description

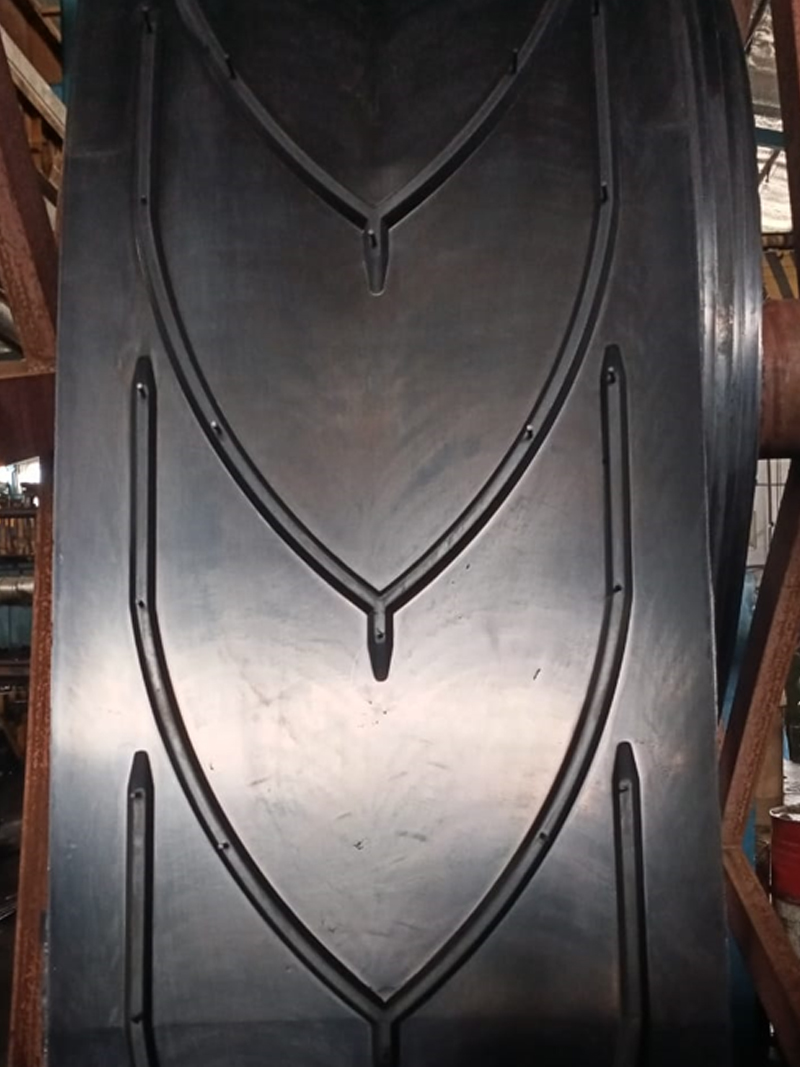

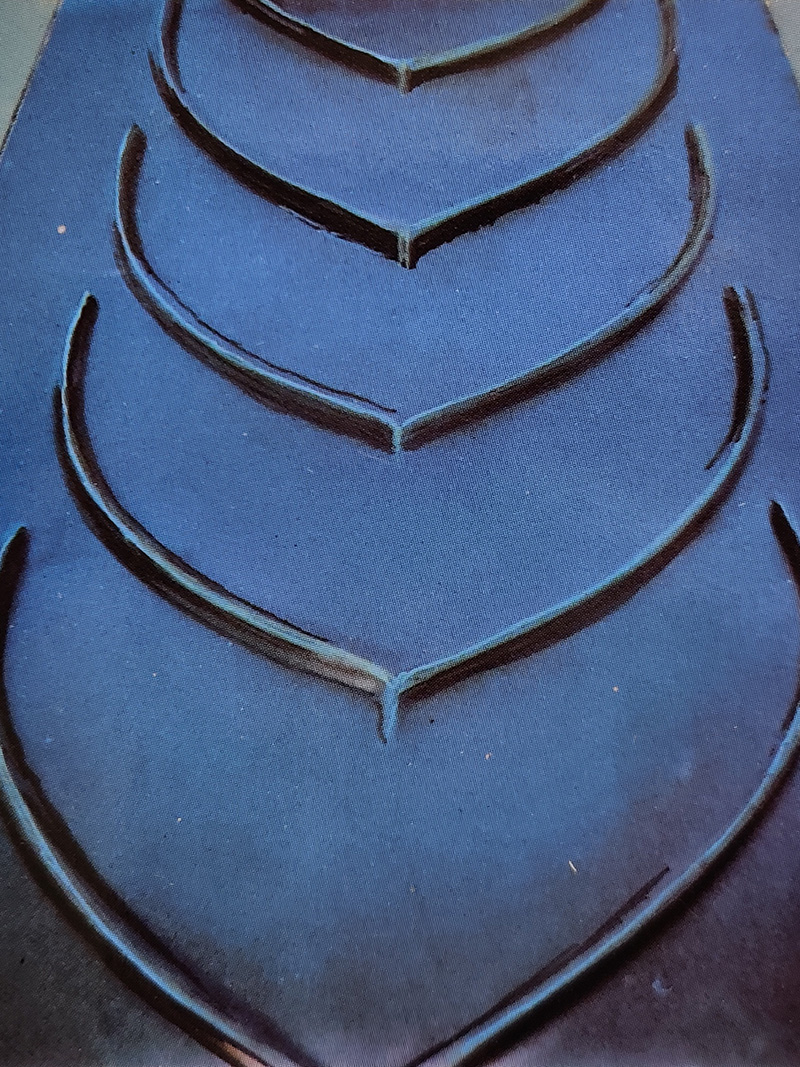

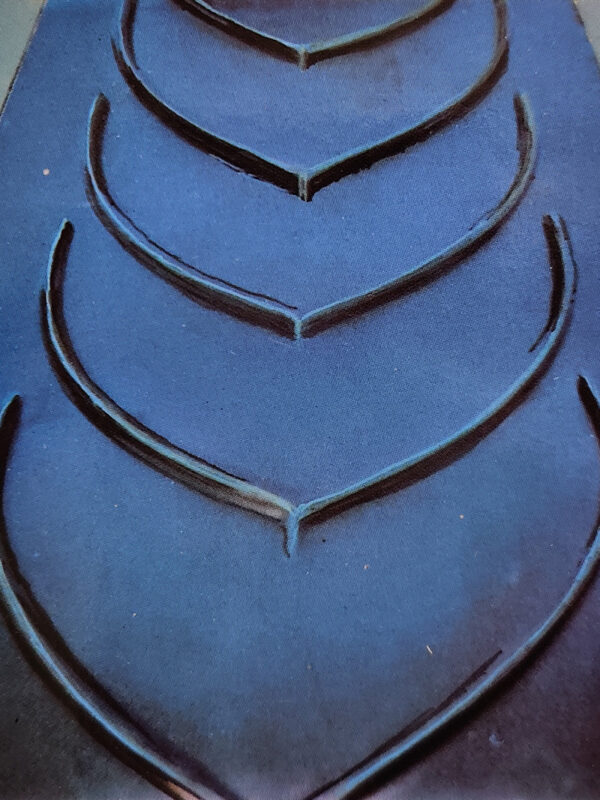

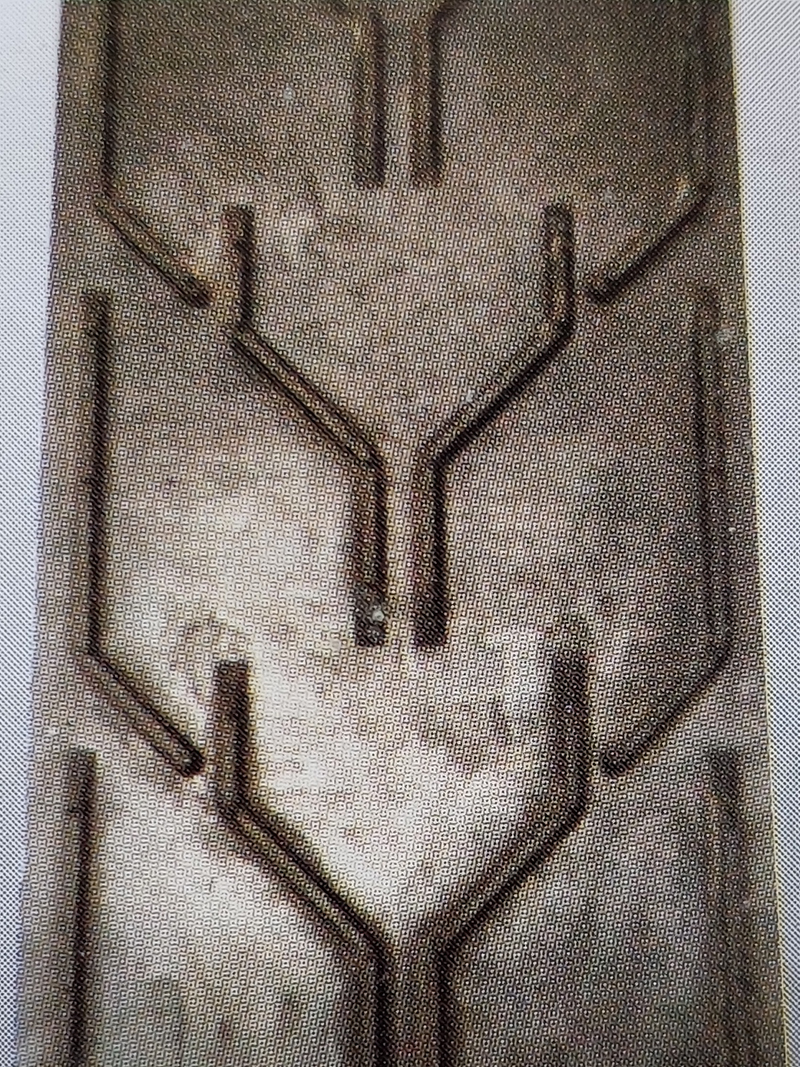

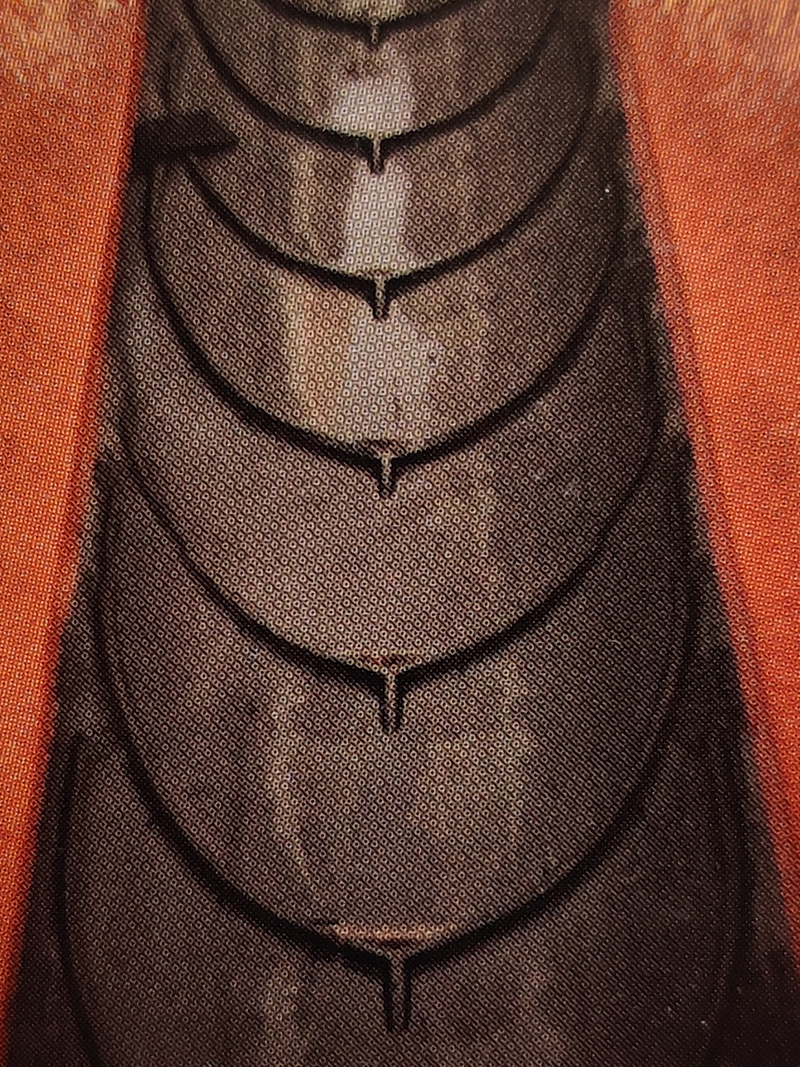

Chevron Conveyor Belts / Profiled Conveyor Belts

Conveyor Belts with a smooth carrying surface are useful for conveying of packed and unpacked material up to the angle of inclination 22° as an upper limit.
However, when the Conveyor Belts have to run on steeper inclines, the material they carry tends to roll back. Increasing the speed of the belt so as to arrest this roll back is one of the most common methods used. However, this leads to greater power consumption and of course, the roll back of the material is not completely arrested.
Indus Super Heave Conveyor Belts are profiled conveyor belts, having cleats on their surface, which ensure that the material is carried along on the steep inclines at normal power consumption and zero roll back.
Be it coal, aggregate, wood chips or potatoes, Indus Super Heave Conveyor Belt will ensure guaranteed performance.
